ROCK Ultra - LiDAR Voltage Settings

Before flying the first flight with your ROCK Ultra unit, you will want to verify that you have the correct voltage setting.

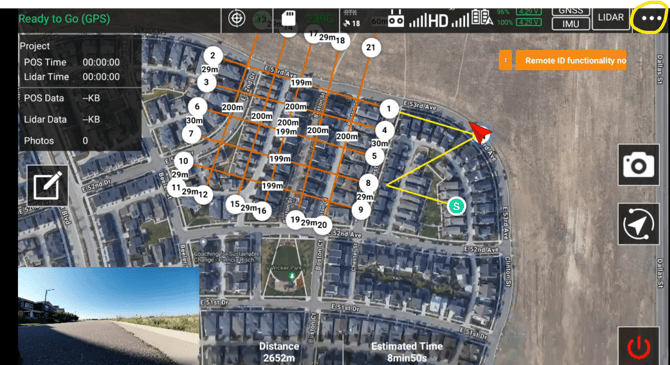

Before flying with a ROCK Ultra unit you will want to check your settings, specifically the "Voltage" Setting.  This is especially critical if flying with a non-DJI drone.  To do this you will need to install ROCK Pilot on either your RC or a tablet.  Once installed, connect your ROCK Ultra to a drone and power the unit on.  Once connected to the LiDAR unit navigate to the settings by tapping on the three dots in the upper right corner of the screen.

1

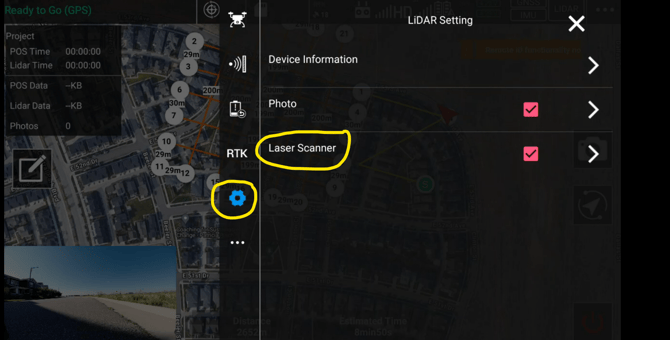

Tap on the "Settings" Icon that looks like a gear, then tap of "Laser Scanner"

lidar settings 2

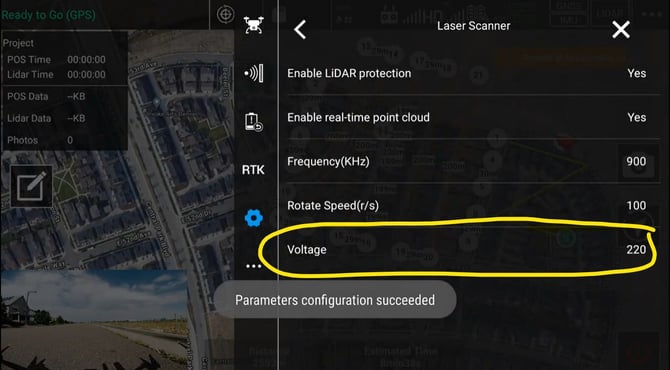

Verify your Voltage is set to "220".

ROCK Pilot Voltage 220 Ultra

If you do not change this setting before the first flight, you will find that the "Lidar1" folder will not create a complete LiDAR file, even though there is data saved in the Cam1 and POS folders.
