      ROCK Ultra - Adjust Photo Parameters

      Adjust Photo Rate, ISO, and Shutter Speed in the ROCK Pilot App

      If you want to adjust your photo parameters when flying your ROCK Ultra survey using the ROCK Pilot application, you can do this following the workflow below.  Because ROCK Ultra datasets are larger than what you may be used to for an R3 Pro V2 or R3 V2 dataset, they can take longer to process.  One way to reduce the processing time is to change the photo frequency from the 2 second default.

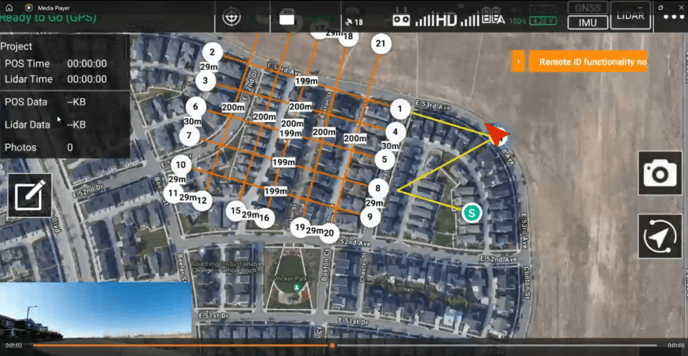

      • Tap on the three horizontal dots icon in the top right of your ROCK Pilot screen
        pilot1

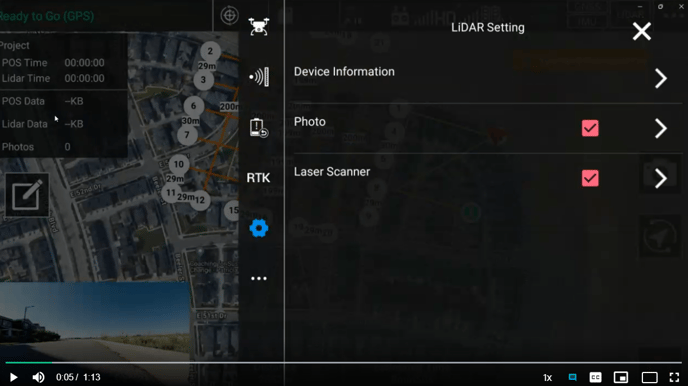

      • Tap on the gear icon
        pilot2

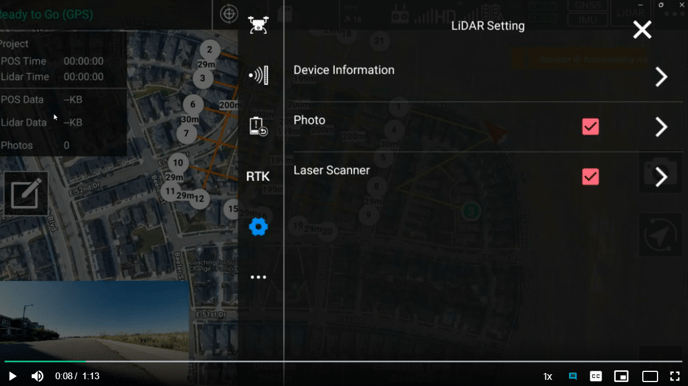

      • Tap on Photo
        pilot3

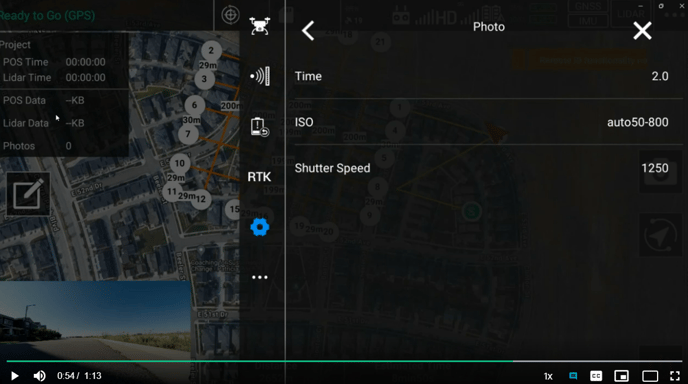

      • You can now adjust your photo frequency, ISO, and shutter speed settings
        pilot 4
